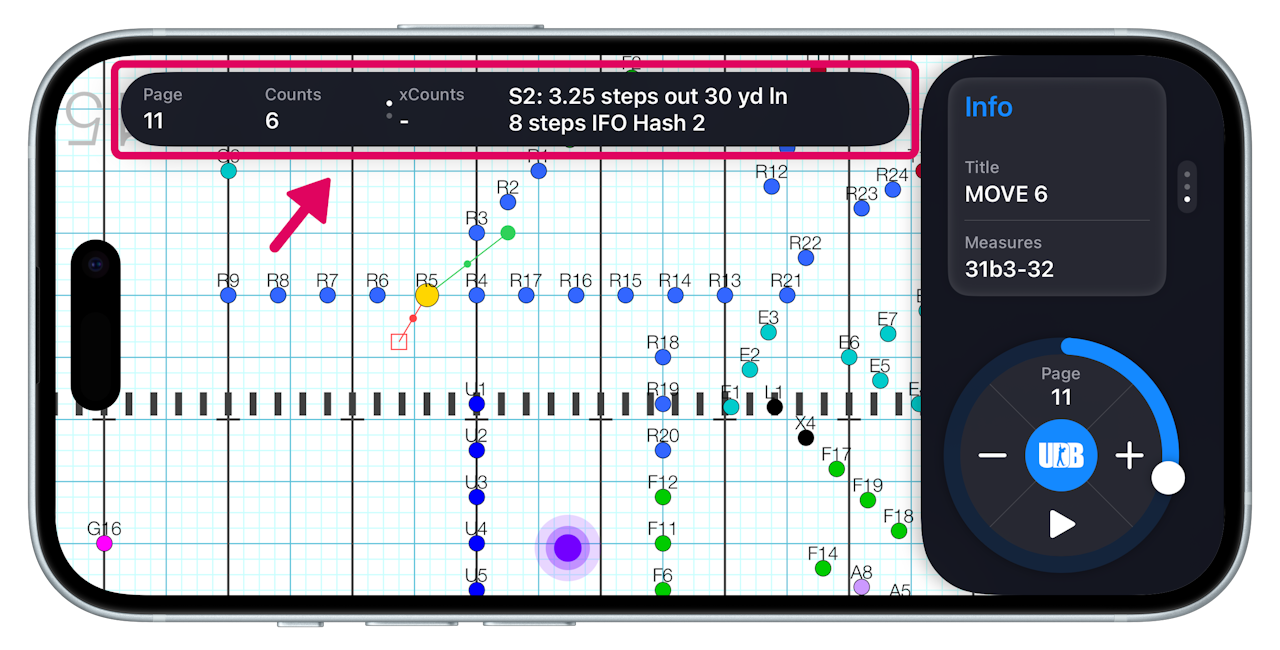

In addition to the page and counts, the Info Bar contains all relevant coordinate and transition information for a specific dot. For Members, this reflects the assigned dot. For Staff and Administrators, this updates based on the selected dot.
Info Bar Features

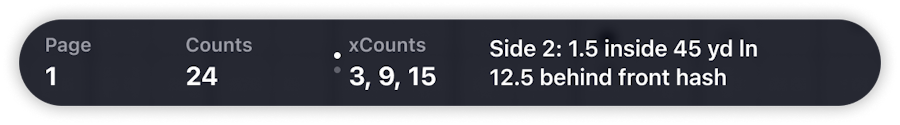

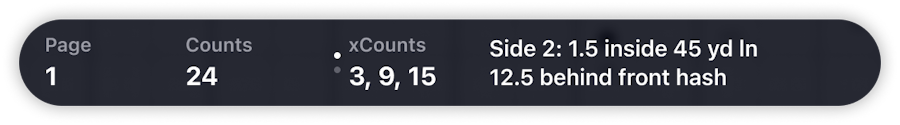

Member Perspective
Page | Count | Tap to swap info | Coordinate | |
xCounts | Step Size | |||
Page number | Current count and total counts | Crossing count(s) if crossing a yard line | Step size using standard X to 5 units | Side-to-side coordinate on top Front-to-back coordinate on bottom |

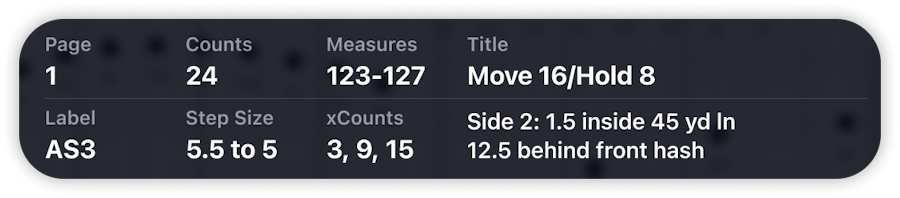

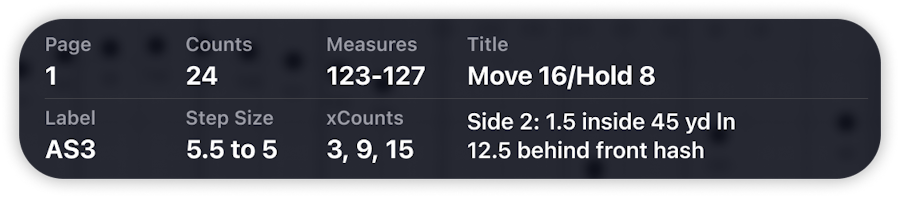

Staff & Director Perspective
Page | Counts | Measures | Title |
Page number | Current count and total counts | Measures (from Pyware® production sheet) | Title (from Pyware® production sheet) |
Label | Step Size | xCounts | Coordinate |
The currently selected dot Information at the bottom of the info bar is specific to the selected dot | Step size using standard X to 5 units | Crossing count(s) if crossing a yard line | Side-to-side coordinate on top Front-to-back coordinate on bottom |
